• Overview: 8-in-1 Liberty USB-C Hub expands the limited USB connectivity of your computer with an HDMI output port, a Gigabit Ethernet port (RJ-45 port), a USB-C charging port, three USB 3.0 ports, and SD and TF card slots
• Ports: USB-C 3.1 Gen.1 male connection with 1x RJ45 female, 1x HDMI female, 3x USB-A 3.0 female, 1x USB-C female PD charging port, 1x SD/TF slot
• Video Resolutions: Supports a full range of resolutions up to 4K UHD 3840×2160 @ 30Hz, 2k, 1080p, 720p, 480p
• Ethernet Data Transfer Rate: Pass up to 1 Gigabit of Ethernet speed
• USB 3.0 Compliance: Gen USB 3.1 while being fully backward compatible for USB 3.0/ USB 2.0/ USB 1.1
• USB 3.0 Data Transfer Rate: Up to 5Gbps shared
• USB-C 3.0 PD Charging port: Up to 100 watts of power delivery, intended Only for a laptop, mobile, and tablet charging
• SD/TF Card Slot: Supported memory card capacity, up to 512GB with read/write speeds up to 480Mbps
• Dimensions: 87mm(L) x 53mm(W) x 15.8mm(H) with a net weight of 65g
• Material: Aluminum alloy chassis with TPE thermoplastic elastomer cable
• Package Includes: USB Hub and user manual
• Complete Plug and Play: No additional setup or configuration required
• Requirements: A laptop or dedicated personal computer with an available Full-featured USB-C port running Windows 7/8/8.1/10 or macOS X v10.0 or above operating systems
• Other: For best performance, devices connected to this hub should not exceed the total current of 900mA, when no external power source is connected. The actual power provided to each USB device and port is based on typical USB standards. Otherwise, the power sent to the connected devices may become intermittent or disconnected

For typical power reference, the below devices are often rated as follows:

Mouse: 100mA

Keyboard: Max. 500mA

Web Camera: 480mA

USB Microphone: 480mA

Portable Hard Disk: Max. 500mA

USB 3.0 Portable Hard Disk: Max. 900mA

* Please double-check the specific rating of your devices before connecting into the Liberty USB Type C Hub

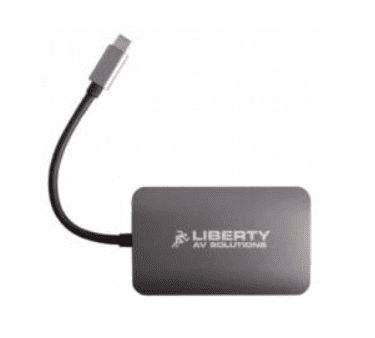

Liberty AV’s 8N1USB-HUB is an advanced USB hub that is designed for convenience, connecting various audio, video, power, USB, storage, and Ethernet signals via a single USB-C cable. Whether at work or at play, simply plug the single cable into your laptop’s USB-C port for instant access to all the devices and files you need. The attached USB-C cable connects your device to the aluminum body of our hub giving you access to all eight ports, including the RJ45 Ethernet port, the 4K HDMI port, the USB-C charging port, three USB 3.0 ports,  and the TF and SD card slots. The USB 3.0 ports support transfer rates up to 5GBps, the USB 2.0 port, and card slots support transfer rates up to 480Mbps, and the Ethernet adapter offers full 10/100/1000 Mbps Ethernet speed. This hub is compatible with Mac OS X 10.6 or higher, Windows XP or higher, and Chrome OS on devices with a Full-featured USB-C port available.

Video: Instantly extend or mirror video to your display/projectors or TV by using the HDMI output
USB Expansion: Expand your USB ports with three USB 3.0 ports to allow connectivity to your keyboard, web camera, microphone,  mouse, and other USB peripherals
Charging: Using the USB-C PD port, you can charge your device up to 100watts, in addition to powering the connected USB peripherals. Simply connect the laptop’s wall charger to the USB-C female port on the hub
Internet: Connect to the internet using a hardwired connection, providing a stable and faster connection
Functionality: Organize the cable confusion of your office space with a centralized USB hub, or increase a laptop’s functionality with the addition of several new ports
