DL-1H1A1UB-H3
Digitalinx Series 4K HDMI & USB HDBaseT 3.0 Extension Set
18G HDBaseT 3.0 Uncompressed HDMI 2.0 4K60 and USB 2.0 High speed extender set with client hub on both ends
Inquire Product
Product Overview

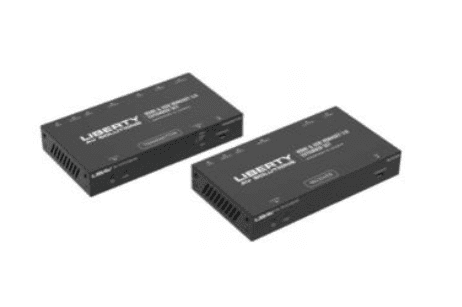

- Box format Transmitter and Receiver set with accessories
- Uncompressed HDMI 2.0 extension featuring HDBaseT 3.0
- HDMI 2.0b, HDCP 2.2 18Gbps 4K60 4:4:4 to 40m over Cat6a U/FTP or above, 10.2Gbps 4K60 4:2:0 to 70m
- Supports HDR, HDR10+, Dolby Vision LLM, HLG
- Supports USB2.0 High Speed (1) Host (2) Clients on TX, (2) Clients on RX
- Supports Isochronous USB data for maximum camera compatibility
- Supports 3.5mm Analog Audio pass through TX-RX
- Includes 24VDC 1A power supply and 4 mounting ears
- For reliable, full featured performance, and to support all resolutions and USB bandwidth to the maximum capability of all HDBaseT 3.0 devices, Cat6A U/FTP or above must be used.
Applications
- Full UHD 4K60 18Gbps HDMI extension and signal routing
- Collaboration rooms with USB cameras, Education, Residential, & any application requiring HDMI & USB
- Collaboration system control for high res systems
Product Summary
Product Overview
*Click to view / download
No Drivers found...
* For more information about our products, contact us, and we’ll get back to you promptly.
