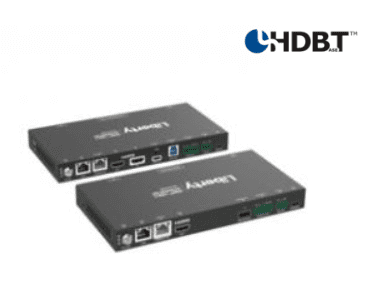

DL-1H1A1UCB-H3
Digitalinx Series 4K60 HDMI & USB-C HDBaseT 3.0 Extension Set
18G 100m Uncompressed HDMI 2.0 / USB-C Auto Switching 4K60 and USB 2.0 High speed extender set with loop out & client hub on both ends
Inquire Product
Product Overview
- HDBaseT3.0 Uncompressed 4K60 & USB Transmitter & Receiver set with accessories
- Uncompressed HDMI 2.0 extension over HDBaseT 3.0 offers resolution support up to 4K60 4:4:4 up to 100m, control, and USB2.0 with isochronous data support for cameras and other USB peripherals over Cat6A U/FTP or above cabling
- HDMI / USB-C auto switching based on video sense or 5V detection
- USB-C full featured passes AV via ALT-DP, acts as a USB host, and provides up to 100w charging power to the host computer over USB-C
- HDMI 2.0b, HDCP 2.2 18Gbps 4K60 4:4:4 to 100m over Cat6a U/FTP or above
- Supports HDR, HDR10+, Dolby Vision LLM, HLG
- Supports USB2.0 High Speed (1) Host (2) Clients on TX, (2) Clients on RX
- Supports Isochronous USB data for maximum camera compatibility
- Audio de-embed on both ends
