DL-1H1A1UWP-H3
Digitalinx Series 4K60 HDMI & USB HDBaseT 3.0 Wall Plate Extension Set
18G Uncompressed HDMI 2.0 4K60 and USB 2.0 High speed Wall Plate extender set with client hub on both ends
Inquire Product
Product Overview

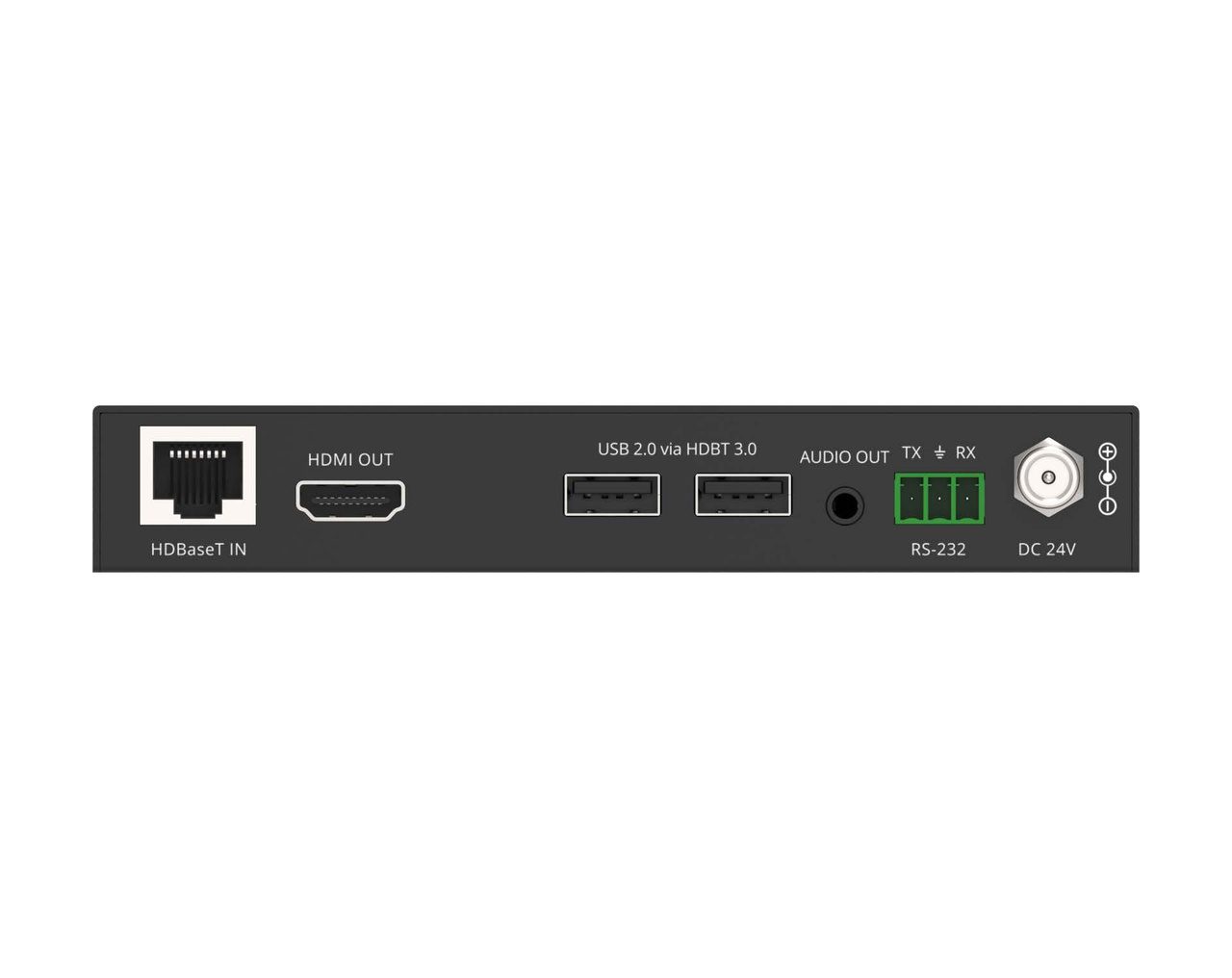

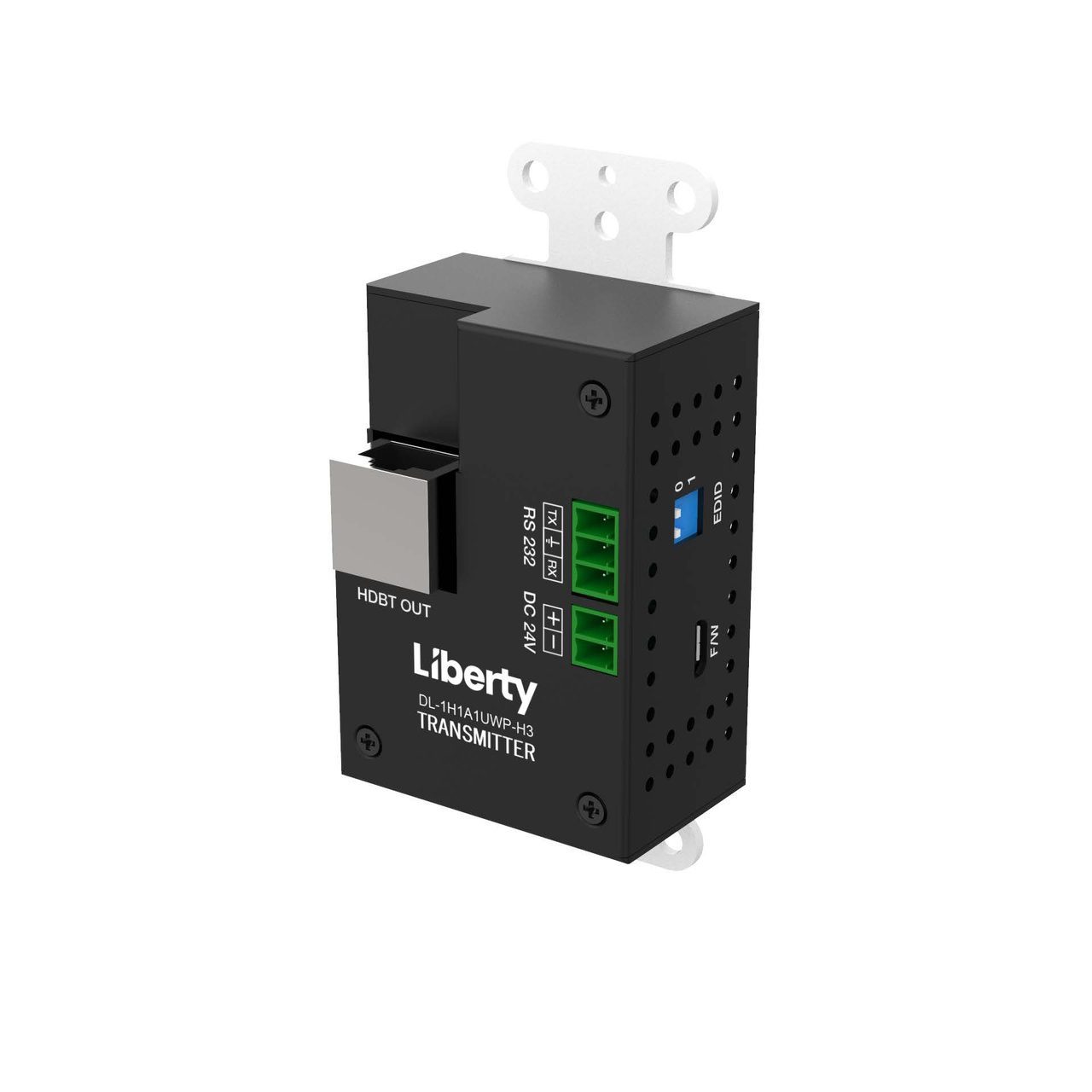

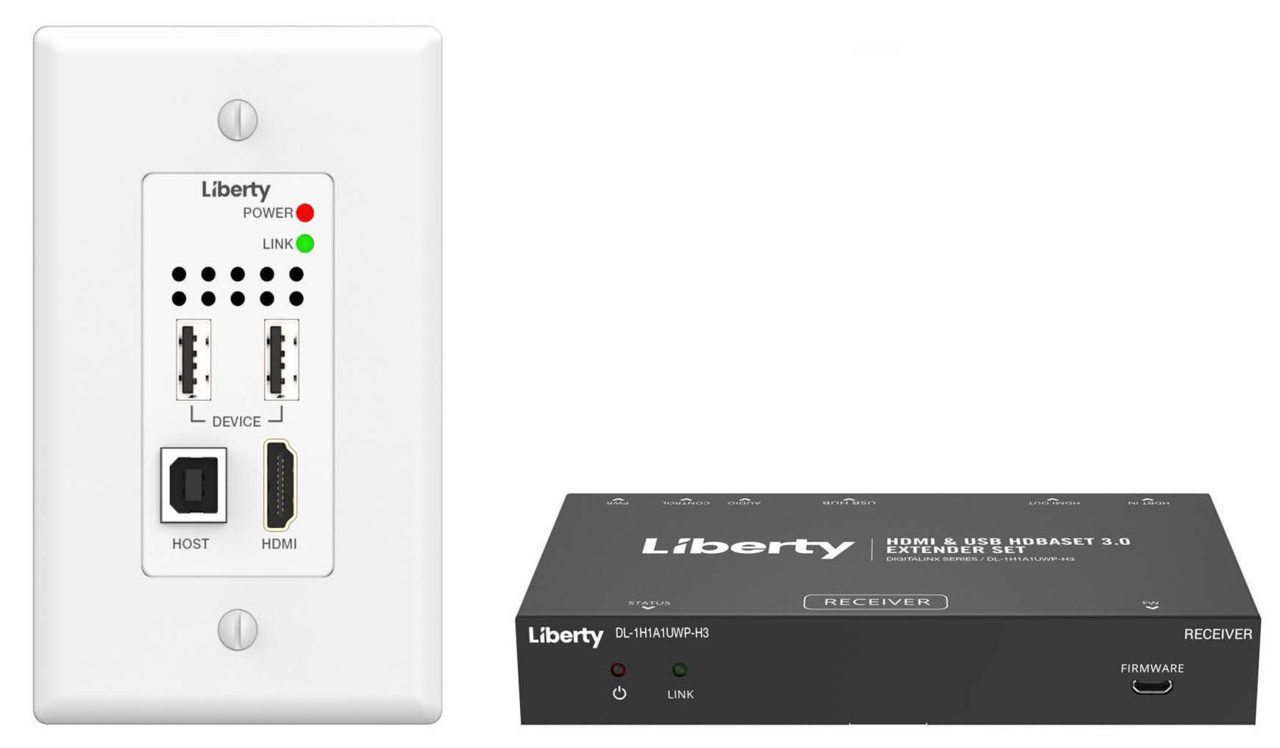

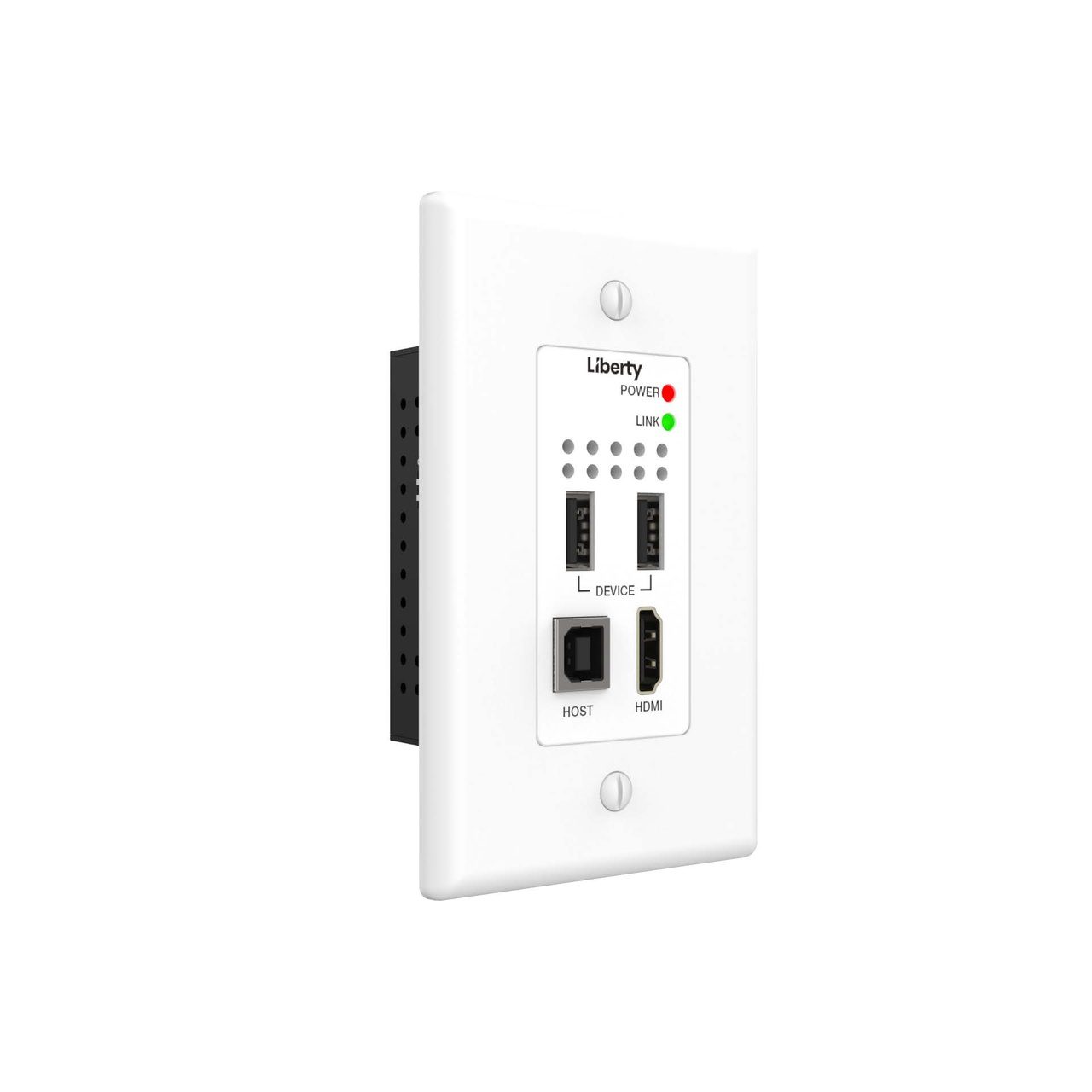

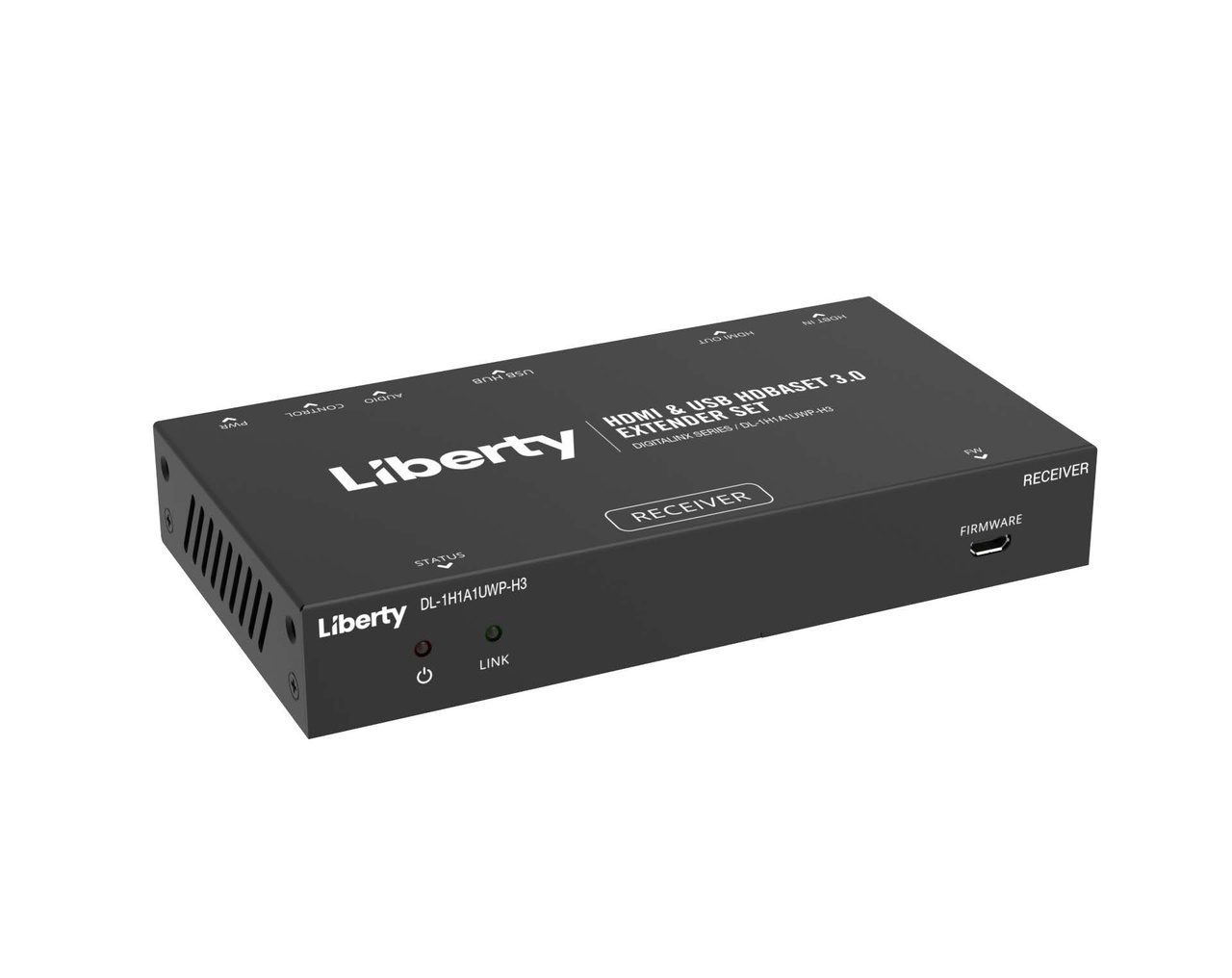

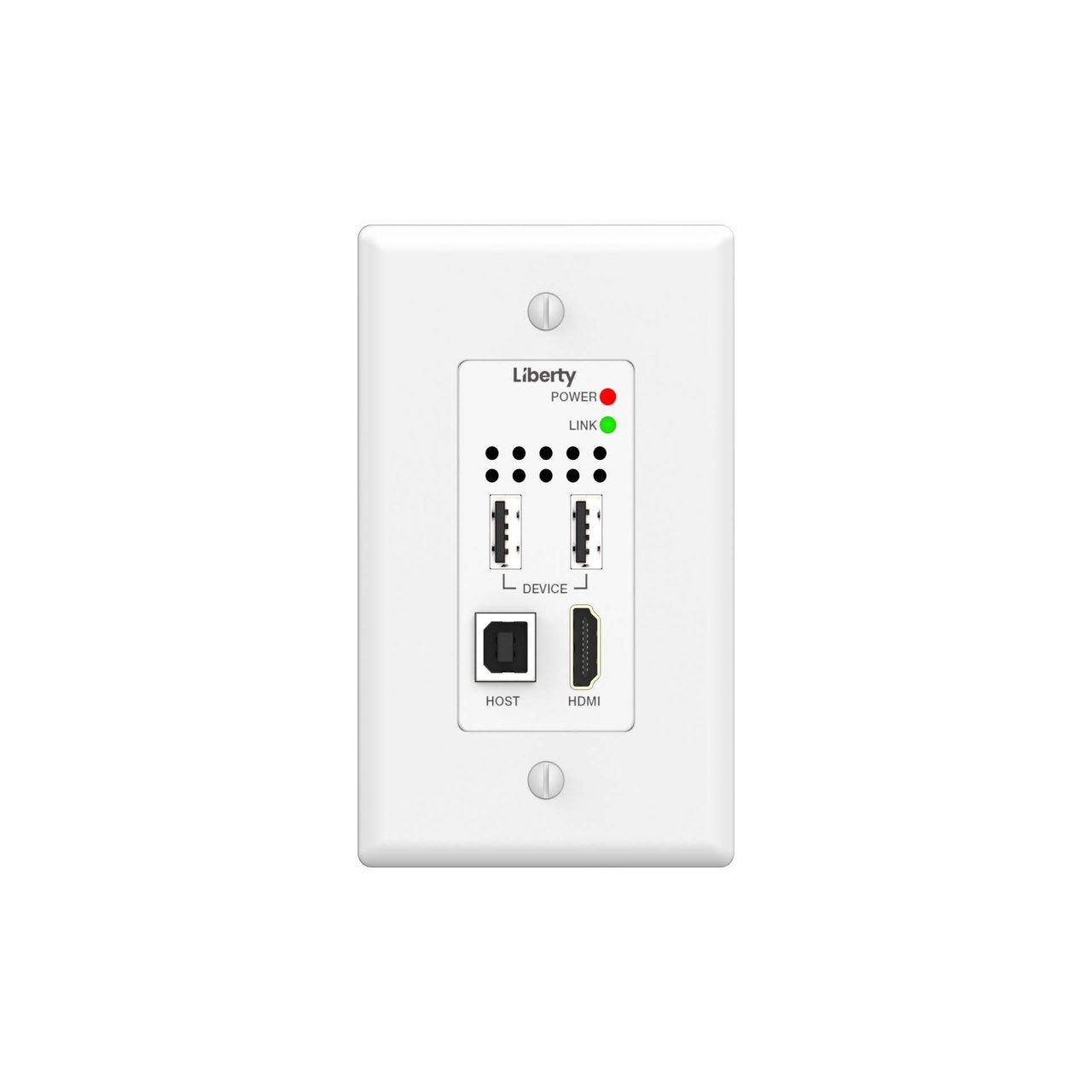

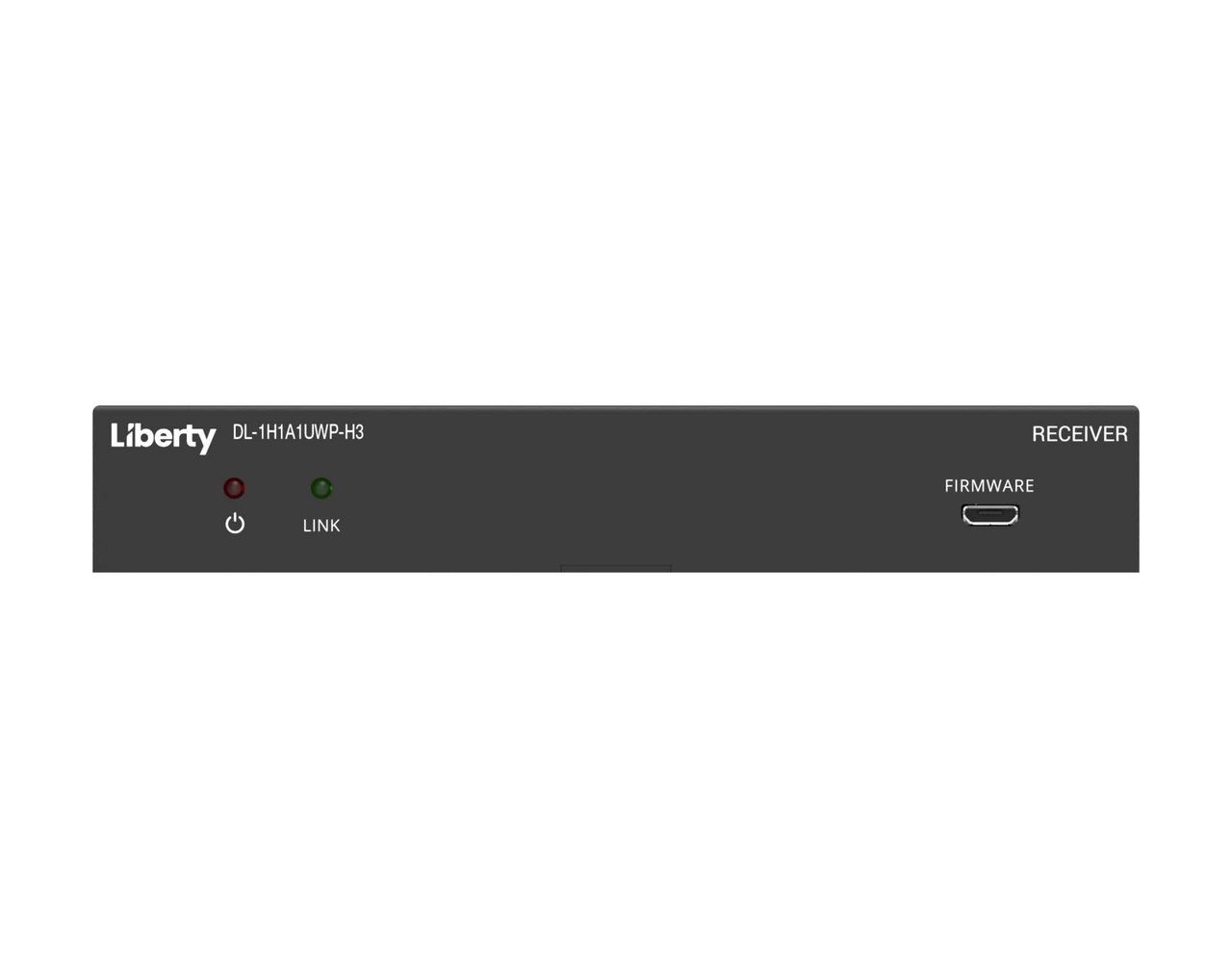

- Single Gang Decora style wall plate format Transmitter and standard style Receiver set with accessories
- Uncompressed HDMI 2.0 & USB2.0 extension over HDBaseT 3.0
- HDMI 2.0b, HDCP 2.2 18Gbps 4K60 4:4:4 to 40m over Cat6a U/FTP or above, 10.2Gbps 4K60 4:2:0 to 70m
- Supports HDR, HDR10+, Dolby Vision LLM, HLG
- Supports USB2.0 High Speed (1) Host (2) Clients on TX, (2) Clients on RX
- Supports Isochronous USB data for maximum camera compatibility
- Audio de-embed on RX
- Includes 24VDC 1A power supply and 4 mounting ears
- For reliable, full featured performance, and to support all resolutions / capabilities of all HDBaseT 3.0 devices, shielded Cat6A U/FTP or above must be used.
