IPEX5101UD-WP

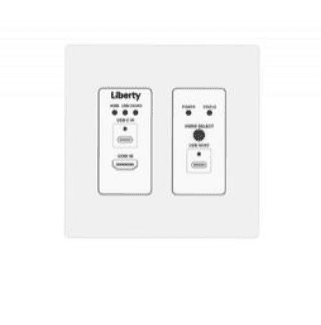

DigiIP 5100 Series Wall Plate AV over IP Encoder w/ PoE
5100 Series 4K60 4:4:4 Dual input HDMI w/USB & USB-C Dual Gang Auto Switching Wall Plate Encoder with Dante audio support
Inquire Product
Product Overview
- Fully routable 2 Gang 2 input Wall Plate Format encoder over 1Gbps network
- Primary inputs include HDMI & USB-C. Input labeled “USB-C” is a full featured input supporting video via ALT-DP, USB data, and power when optional power supply is used. The USB-C port labeled “USB Host” is for USB data only and is to be used with the HDMI input
- Simple configuration using Arranger software
- Supports 4K60 4:4:4 and 7.1 Audio
- HDCP 2.2 Compliant
- USB C port supports 2 lane ALT-DP Audio/Video w/USB data simultaneously, and can offer device charging when using optional power supply PS-20V-6A
- Dual Power, PoE or DC power input. Optional second power supply PS-20V-6A can be used to inject device charging power to the USB-C port
- Fully routable/switchable USB Supports Isochronous data up to 190Mbps
- Dante audio support
- TAA Compliant
Product Summary
