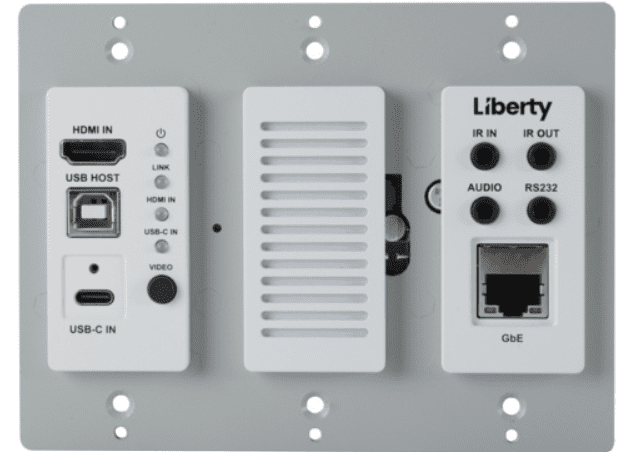

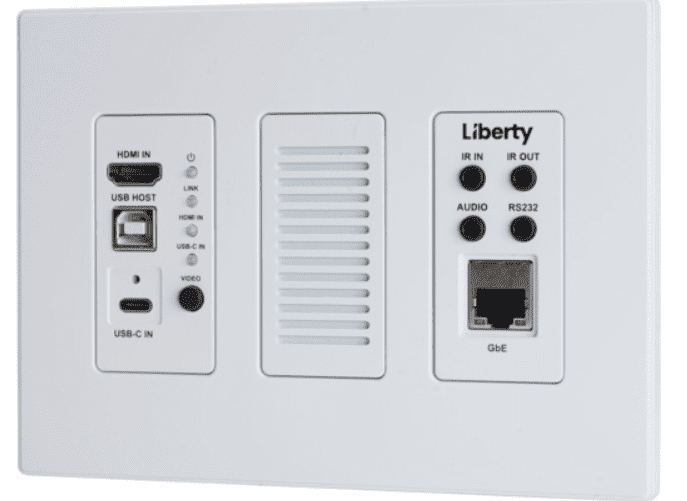

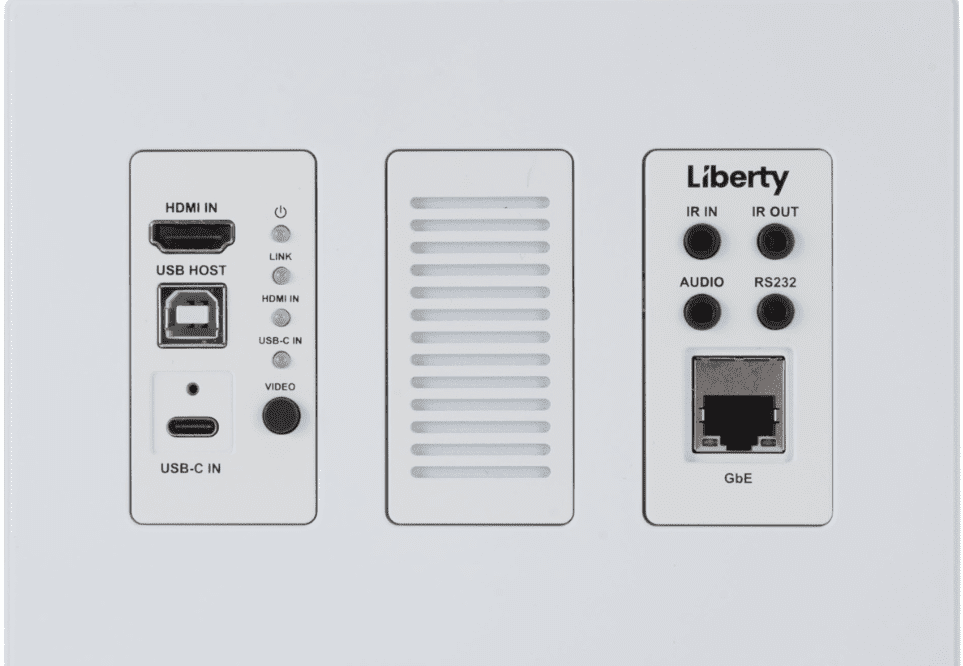

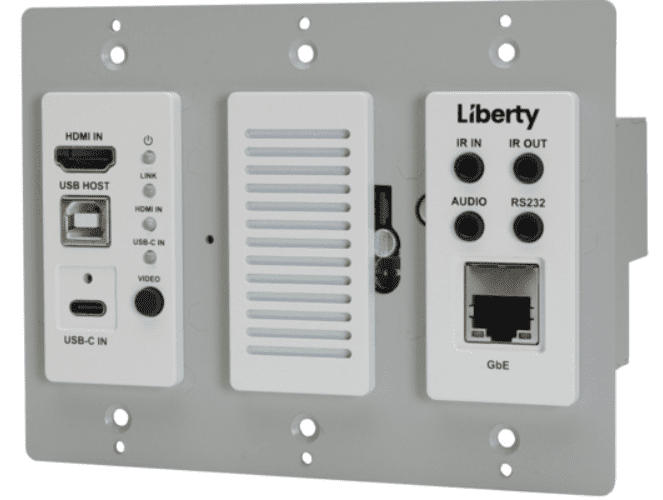

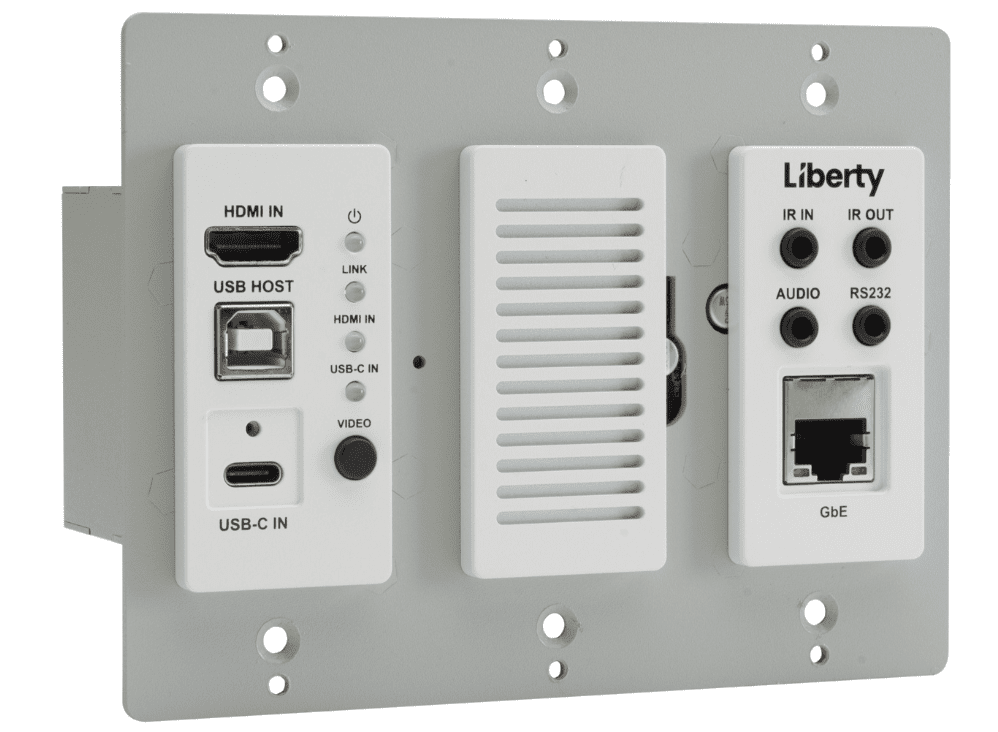

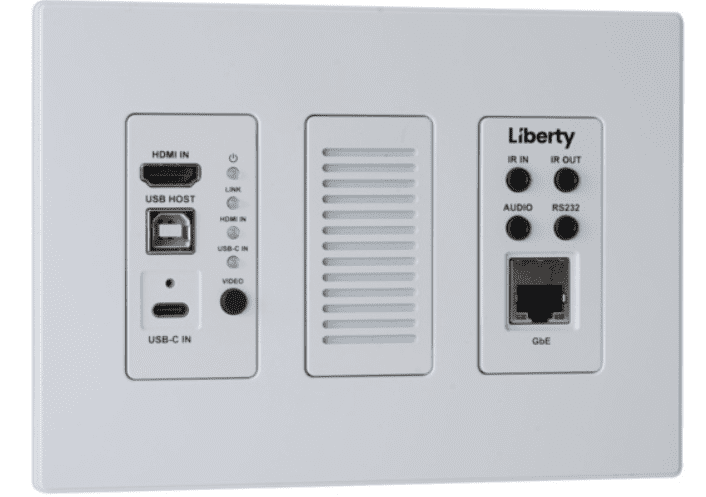

• Fully Routable zero latency HDMI 2.0 signals up to 4K60 4:4:4 over standard 10GbE Network
• Follows 10Gbps Ethernet networking standards, can extend full 4K60 18Gbps resolutions and capability up to 100 meters using CAT6A cable
• HDMI and USB-C auto switching inputs. USB-C supports AV and routable USB2.0 high speed data using Icron technology
• Supports HDR10+ & Dolby Vision
• Supports Multi-Channel audio up to 7.1
• Extends 1Gbps Ethernet, RS232, IR, & USB 2.0 High speed isochronous
• USB can be routed to IPEX6002U-WP wall plate decoder or to stand-alone IPEX-USB2-C client device and can be switched and routed for multiple host/client configurations
• Multi-view support with over 40 layout presets
• HDCP 1.4/2.2 Compliant

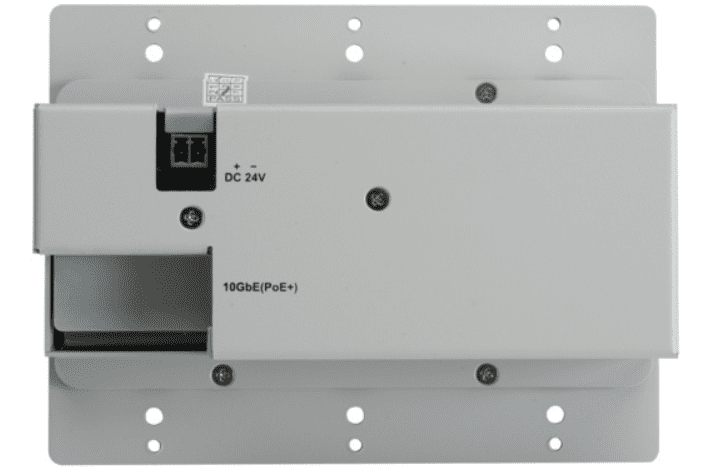

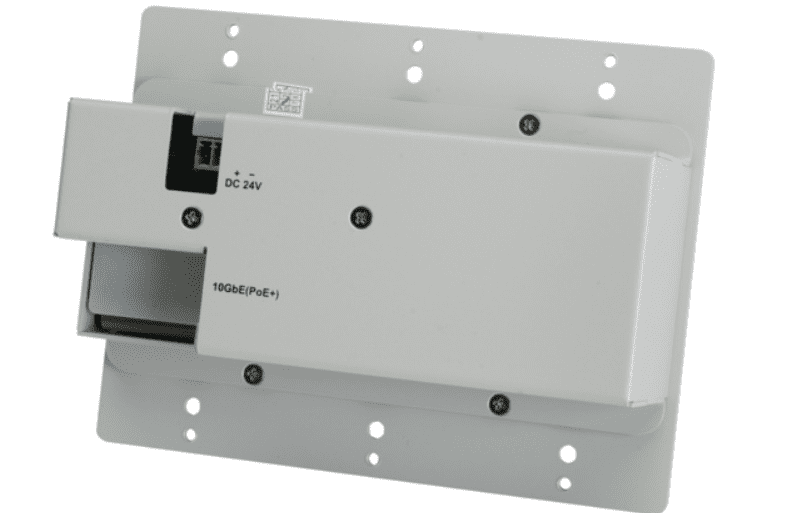

• Supports PoE+. Adding optional power supply PS-24D-5A will provide up to 65W device charging power to the USB-C port
• Interoperable with other products using SDVoE technology
• Easy to configure using Liberty AV’s NEW Arranger software
