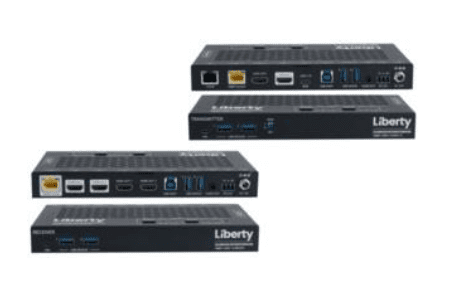

TU-HUC42-KIT
TeamUp+ Series Dual or Single Screen Collaboration Switcher / Extender / Hub
TeamUp+ 18G BYOM Collaboration Switcher / Extender kit with uncompressed 4K60 over HDBaseT 3.0
Inquire Product
Product Overview
- Switch AV & USB sources on both sides of HDBT circuit including dual screen support from the RX for BYOM applications
- Dual AV plus USB host inputs on RX supports Dual screen output Room PC’s located at display location
- Supports uncompressed HDMI 2.0 4K60 4:4:4 video up to 40m or 4K30 up to 70m and USB 2.0 High speed with Isochronous support for max camera compatibility over HDBaseT 3.0 up to when Cat6A U/FTP or above cabling is used
- Switch between HDMI & USB-C on TX or RX. USB-C supports full functionality including AV (ALT-DP), USB data, Ethernet, & device charging power
- USB3.0 Hub and switching auto switches for BYOM environments
- Auto switching, TCP/IP, or RS232 controllable
- EDID & HDCP management options built into WebGUI
- Built in display control with scheduling capability for powering on/off connected displays
- TU-HUC42-KIT is a kit sku that includes TX part number TU-HUC42-TX and RX part number TU-HUC42-RX. These can be purchased individually as well
- For reliable, full featured performance, and to support all resolutions / capabilities of all HDBaseT 3.0 devices, shielded Cat6A U/FTP or above must be used.
- TAA Compliant
